     ACCESSORIES



Transceivers
Coupler boxes
1. VL -1N
2. EL-12R
3. EL-12N
4. EL-15N

VL-1N  NEW
MIL-STD-1553B Fiber Optic Transceiver

Fiber Optic Transceiver Fiber Optic Transceiver


  • Pin-to-pin compatible with Wire Transceiver EL-12N;
  • Harris interface type with Encoder/Decoder;
  • Dimension: 42 x 28 x 12 mm;
  • Compatible with 50/125 um or 62.5/125 um Fiber
  • 820 nm Wavelength;
  • Link Distances up to 2.7 km;
  • Choice of ST, SMA, SC or ST Ports;
  • Power Supply Current (+5V):
    85mA - Transmitter idle
    108mA - 90% Transmitter Duty Cycle;

EL-12R
MIL-STD-1553 Data Bus Dual Transceiver

Dual Transceiver Dual Transceiver
The EL-12R transceiver is a complete dual transmitter and receiver pair conforming fully to MIL-STD-1553B.
  • Size (38 x 34 x 8 mm);
  • Power Supply Requirements: 15 mA (+5V), 15,6 mA (-12V),
    4,3 mA (+12V, idle both channels);
  • Harris interface type with Encoder/Decoder;
  • Completely independent dual redundant operation.

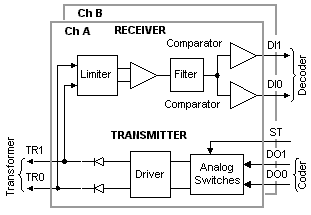

The receiver section accepts phase-modulated bipolar data from a MIL-STD-1553 B Data Bus (TR1, TRO) and produces TTL level signals at its outputs DI1, DIO. The transmitter section accepts bipolar TTL signal data at its D01, DOO inputs, and produces phase- modulated bipolar data at the TR1,TRO outputs. An external input ST takes priority over the transmitter inputs and disables the transmitter when activated with logic "0".



EL-12N
MIL-STD-1553 Data Bus Single Transceiver

Transceiver

The EL-12N Block Diagram is the same as EL-12R.
The EL-12N transceiver is a complete transmitter and receiver pair conforming fully to MIL-STD-1553B.
  • Size (40 x 30 x 8 mm);
  • Power Supply Requirements: 15 mA (+5V), 15.6 mA (-12V),
    2.2 mA (+12V, idle mode);
  • Harris interface type with Encoder/Decoder.
The receiver section accepts phase-modulated bipolar data from a MIL-STD-1553 Data Bus (TR1, TRO) and produces TTL level signals at its outputs DI1, DIO. The transmitter section accepts bipolar TTL signal data at its D01, DOO inputs, and produces phase - modulated bipolar data at the TR1, TRO outputs. An external input, ST, takes priority over the transmitter inputs and disables the transmitter when activated with logic "0".


EL-15N
MIL-STD-1553 Data Bus Single Transceiver

Transceiver

The EL-15N Block Diagram is the same as EL-12N.
The EL-15N transceiver is a complete transmitter and receiver pair conforming fully to MIL-STD-1553B.
  • Size (40 x 30 x 8 mm);
  • Power Supply Requirements: 16 mA (+5V), 16 mA (-12V),
    4 mA (+15V, idle mode);
  • Harris interface type with Encoder/Decoder.
The receiver section accepts phase-modulated bipolar data from a MIL-STD-1553 Data Bus (TR1, TRO) and produces TTL level signals at its outputs DI1, DIO. The transmitter section accepts bipolar TTL signal data at its D01, DOO inputs, and produces phase - modulated bipolar data at the TR1, TRO outputs. An external input, ST, takes priority over the transmitter inputs and disables the transmitter when activated with logic "0".



Document Size Last update
Datasheet (RUS) VL-1N Download 20kB 15.12.2002
Datasheet (RUS) EL-12R Download 106kB 13.09.2002
Datasheet (RUS) EL-12N Download 103kB 13.09.2002
Datasheet (RUS) EL-15N Download 120kB 13.01.2009
